Job #5848

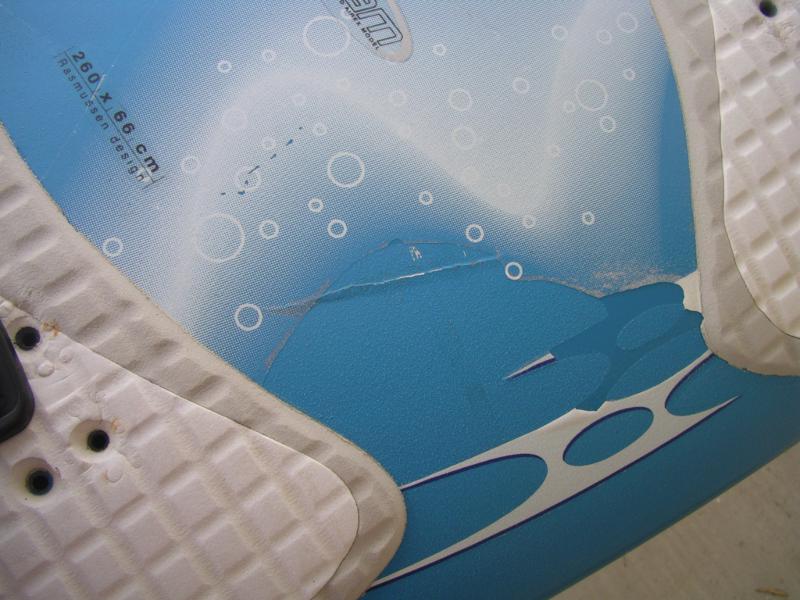

crease under stbd jibe stomp area - soft & crunchy

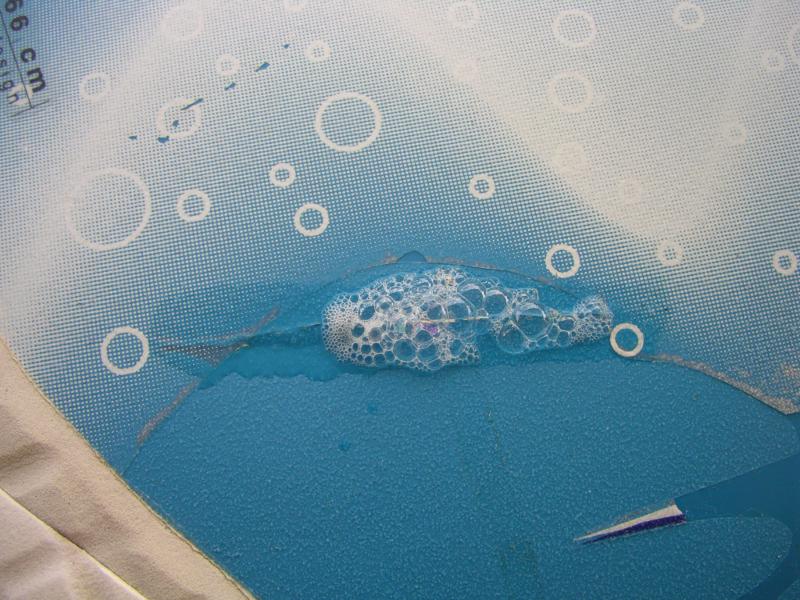

bubble test - it leaks

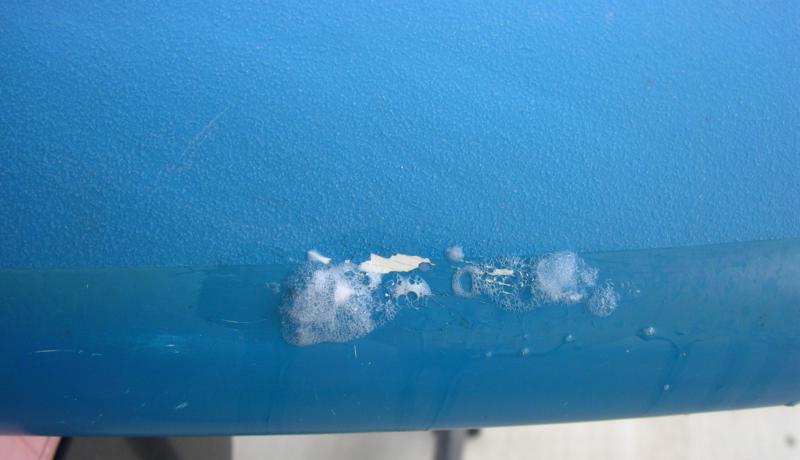

the stbd mast slam 1 1/2ft off nose leaks as well

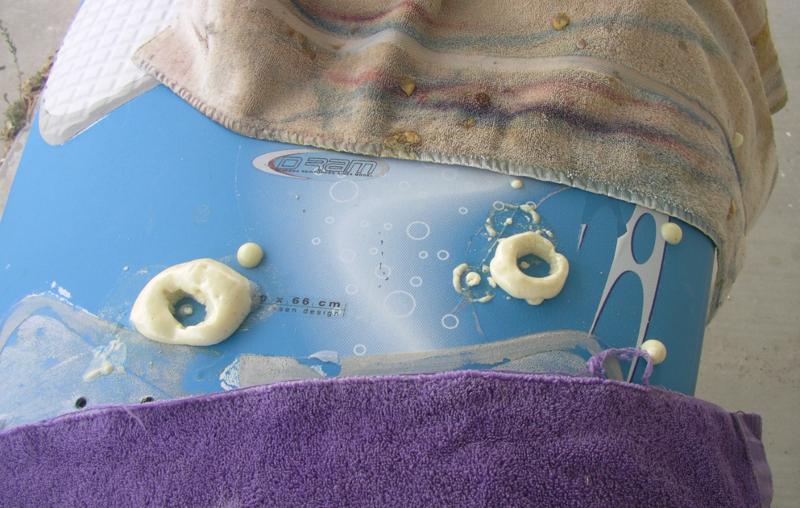

inject some Urethane foam to prevent deck collapse during evacuation

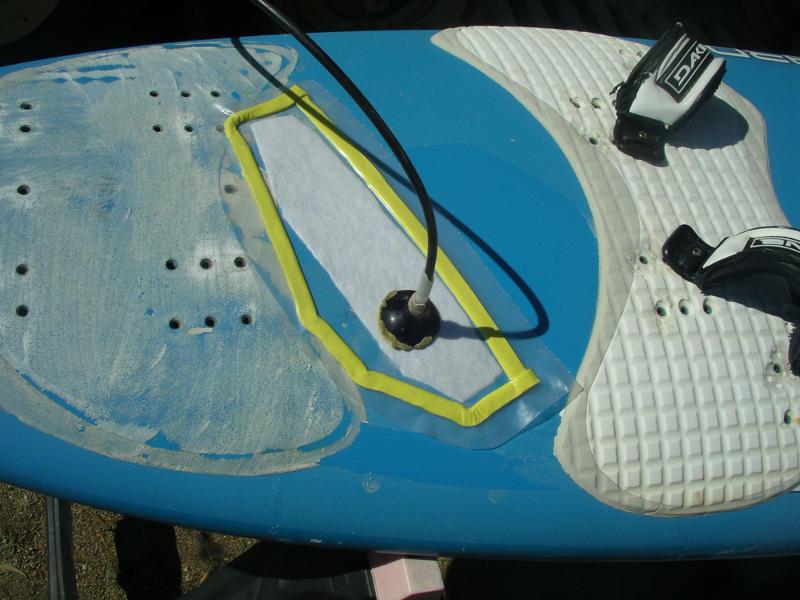

evacuate water from core

time to look into the guts - arrgghh! this did not stand a chance...

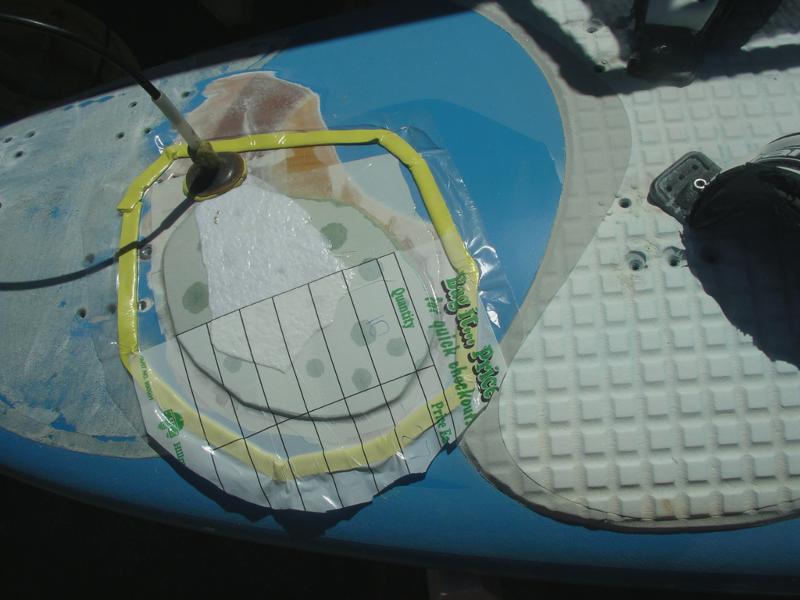

but onwards! new inner glass and Divinycell being vacuum-bagged to soft area

raw new Divinny patch

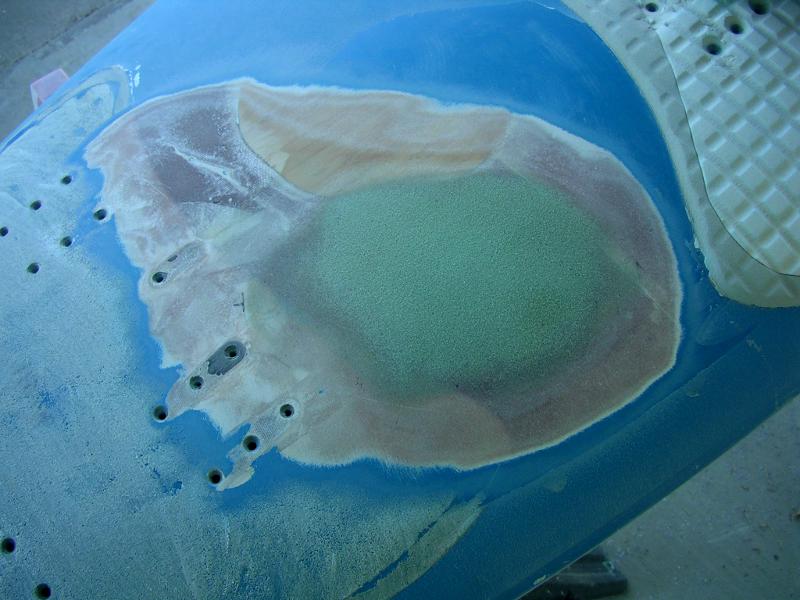

new Divinny feathered out

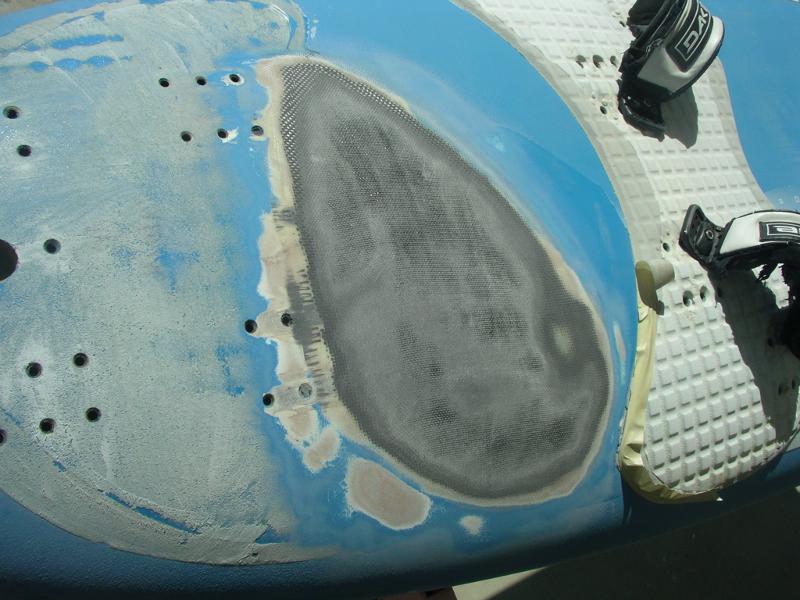

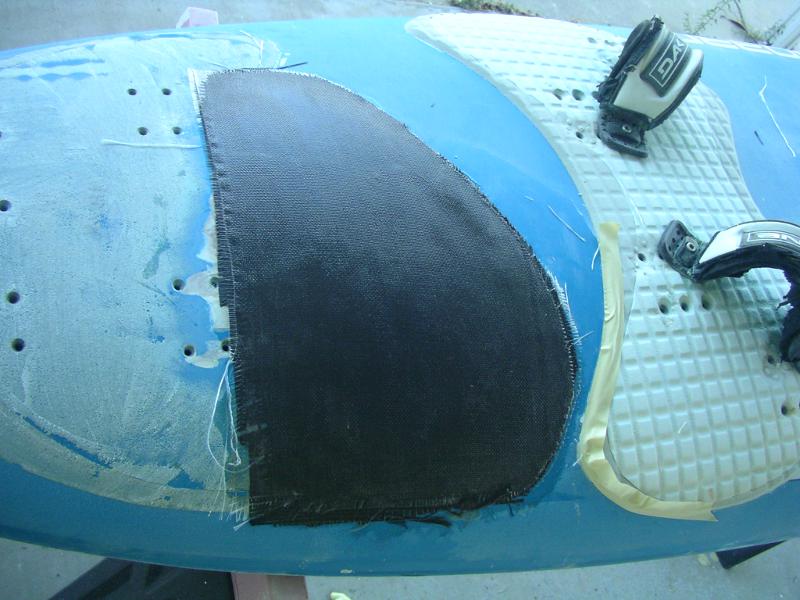

"glassed" over with 2x 6oz fiberglass plus 4.5oz Carbon cloth - new structurals complete

new lams feathered out

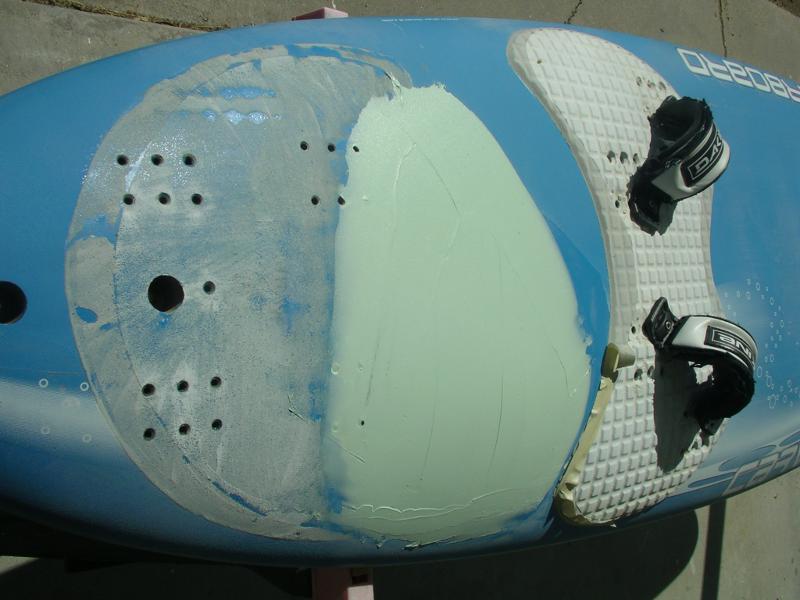

Epoxy fairing compound, generously applied

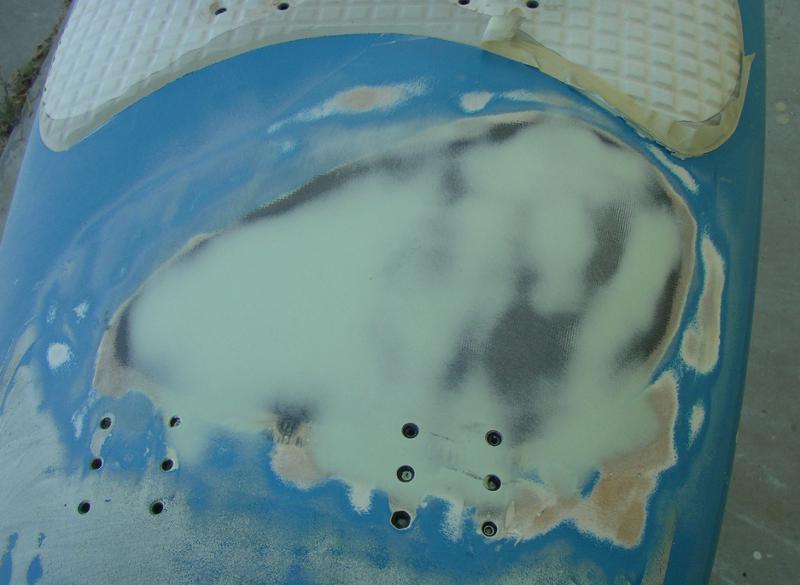

excess fairing compound sanded off

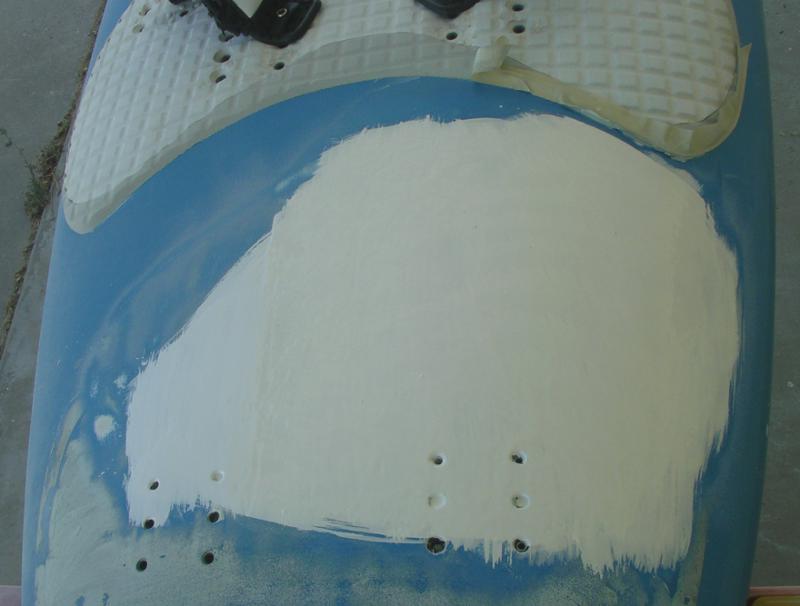

Epoxy primer slathered on
ready for paint

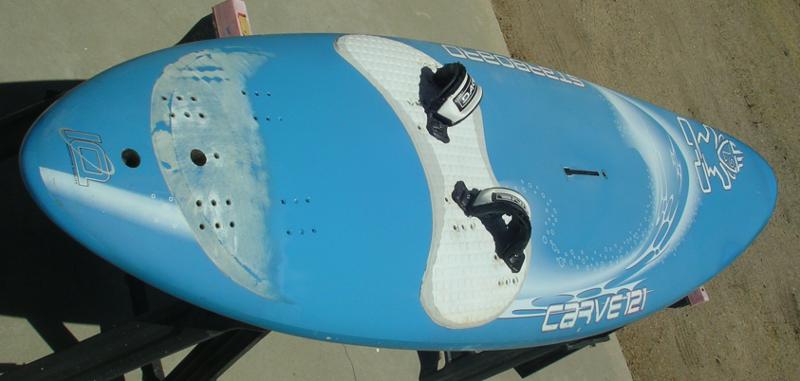

blue!

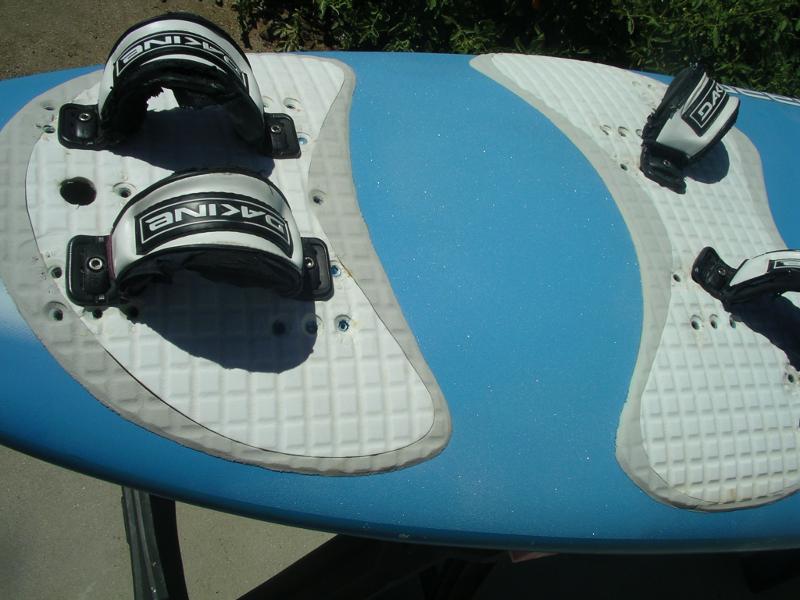

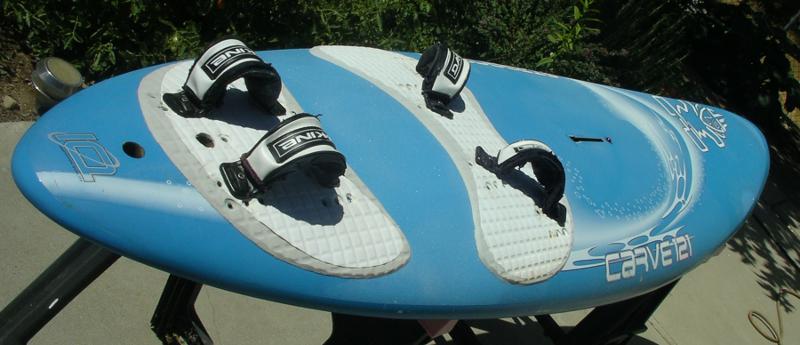

all back together
a bit more curing, a bit of dusting, and she'll be good to go - bring on the wind! (btw, total weight gain 1oz)
